THERMAL FLUID HEATERS

Fuel heaters

(Natural gas, Gasoil, Fuel oil, Biogas).



Powers from 10,000 kcal h to 10,000,000 kcal / h.
Whatever your application requires power, NOXMAN heaters can meet your needs.

Design temperature: 400 ° C.

Construction using two or three helical coils.

Absence of refractory.
The state-of-the-art design features of a NOXMAN heater means total self-cooling via the heat transfer fluid itself, providing the highest security and efficiency levels possible.

Bottom cooled by the heat transfer fluid. Extend the life of the boiler and higher efficiency through increased heating surface provided with the same size.

Overpressure absorption system through our unique expansion system, which extends the life of the heater.

Visitable furnace directly through the expansion system. It is the most effective way to access the inside of the heater. Significantly reduces the cost of revisions.

Possibility of vertical or horizontal layout.

Regulations.
Meet the latest Pressure Equipment Regulations, as well as all national and European Standards:

UNE 9-310

DIN 4754

RD 769/1999

RD 2060/2008

RD 709/2015

2014/68/UE

Special heaters.
Possibility to make heaters that meet certain requirements, either by size, power, temperature difference and so on.



Range of heaters

Serie

Power (Kcal/h)

P design (bar)

T design (ºC)

Layout

  CL v2

100 000 -180 000

10

400

Vertical

CL v3

200 000 – 10 000 000

10

400

Horiz/vertical

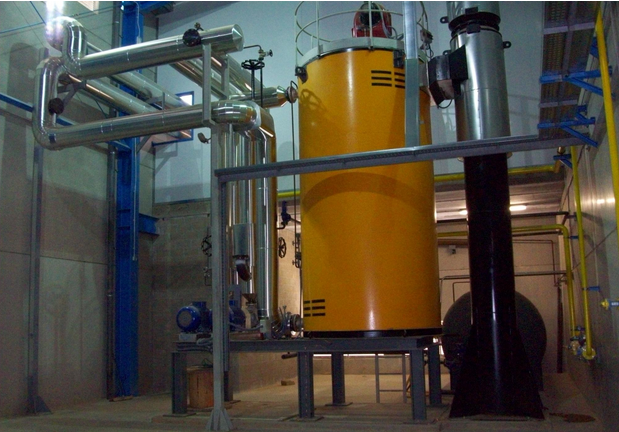

Gallery
